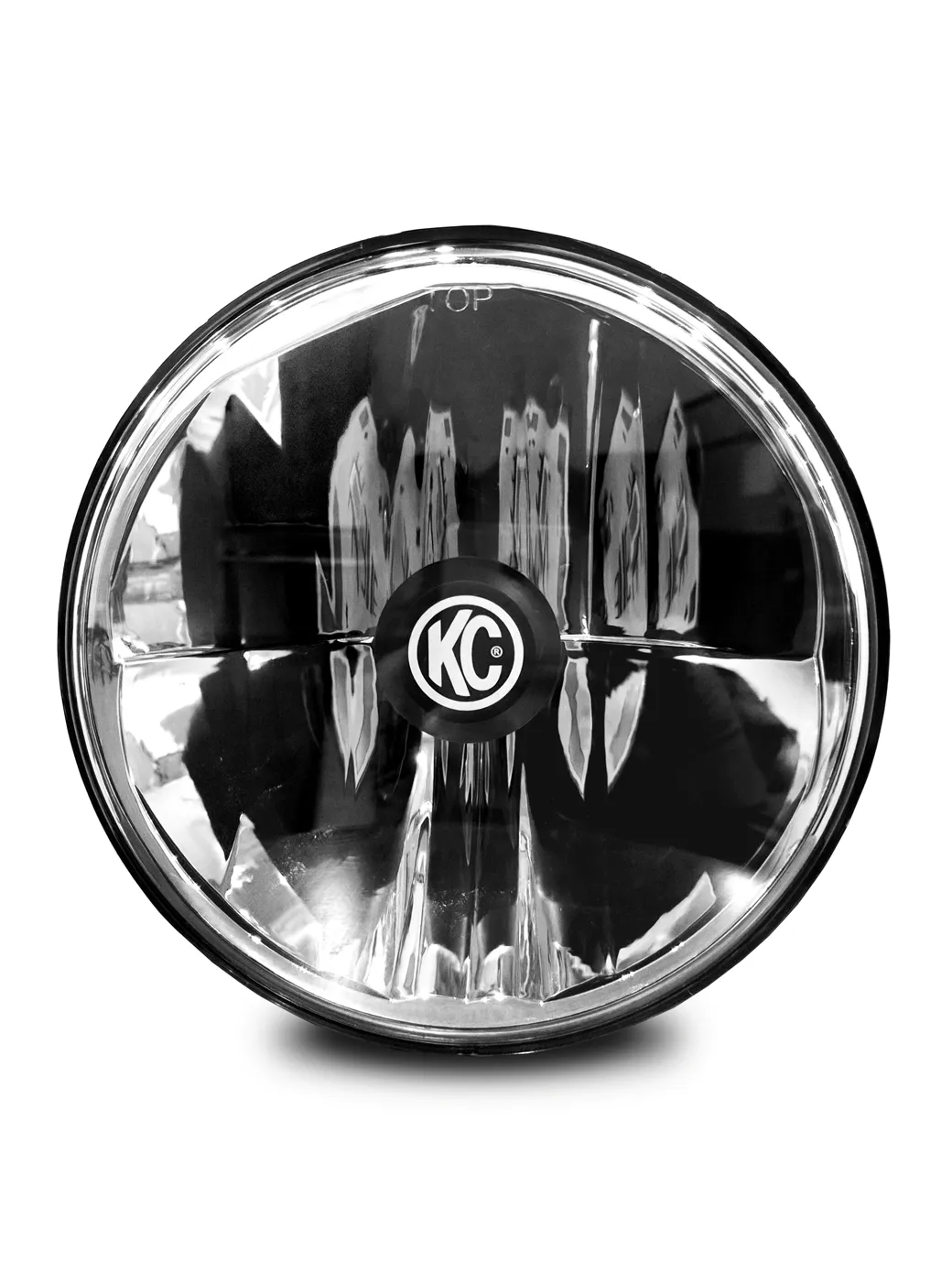

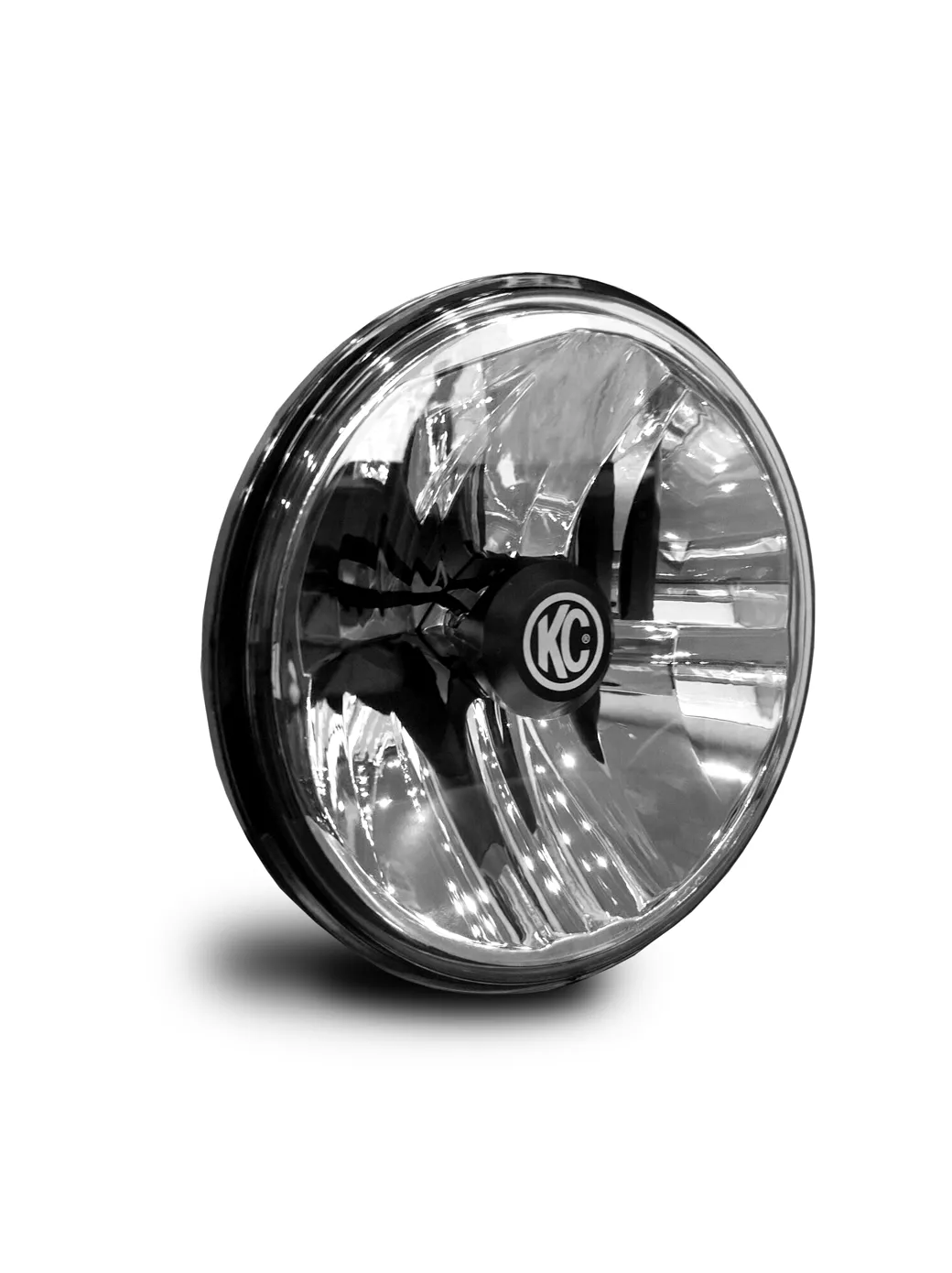

Gravity® LED 7" Headlight Pair Pack System

KC's Gravity® LED Pro 7" Jeep Wrangler JK Headlights feature bright CREE LEDs for DOT low/high beams on 2007-2018 JKs. Diecast aluminum housing and polycarbonate lens for optimal performance. High/Low beams with built-in DRL, and anti-flicker capacitors.

FEATURES

Patented Gravity® GRD (Gravity Reflective Diode) technology
Precision die-cast aluminum housing with machined polished reflector optics, engineered for improved distance, visibility and clarity
Hard coated Polycarbonate lens for optical clarity and maximum light output
DOT Compliant Low Beam and High Beam with On-board Day Running Lamp Support (Standard on 2007-2018 Canada Spec Jeep Wrangler JK)
Easy plug-and-play installation to factory H4 connectors on Jeep 1997-2006 Wrangler TJ or H13 connectors for 2007-2018 Jeep Wrangler JKs

Note: Does not fit 2017-2018 Jeep Wrangler JK Rubicon or Sahara editions or Jeep JKs equipped with factory LED headlights

Universal Plug-n-Play with factory 7" H4 Headlights (KC 42361):

1997-2006 Jeep Wrangler TJ
Retrofit upgrade for classic Domestic, European and JDM vehicles

LIGHT PERFORMANCE(PER LIGHT)

Raw Lumens: Low- 1,260 lm, High- 3,666 lm, DRL- 275 lm
Lux @ 10 Meters: Low- 415 lx, High- 775 lx
Candela: Low- 41,500 cd, High- 77,500 cd
Beam Distance: Low- 407m, High- 557m

SPECIFICATIONS

Wattage: Low- 18W, High- 22W
LED Bulb: CREE XHP35 HI and Nichia
Color Temperature: 5000K
Amp Draw: 1.88A
Voltage: 9V-18V
IP Rating: IP68
Product Dimensions: 6.96" x 3.72"

PARTS INCLUDED:

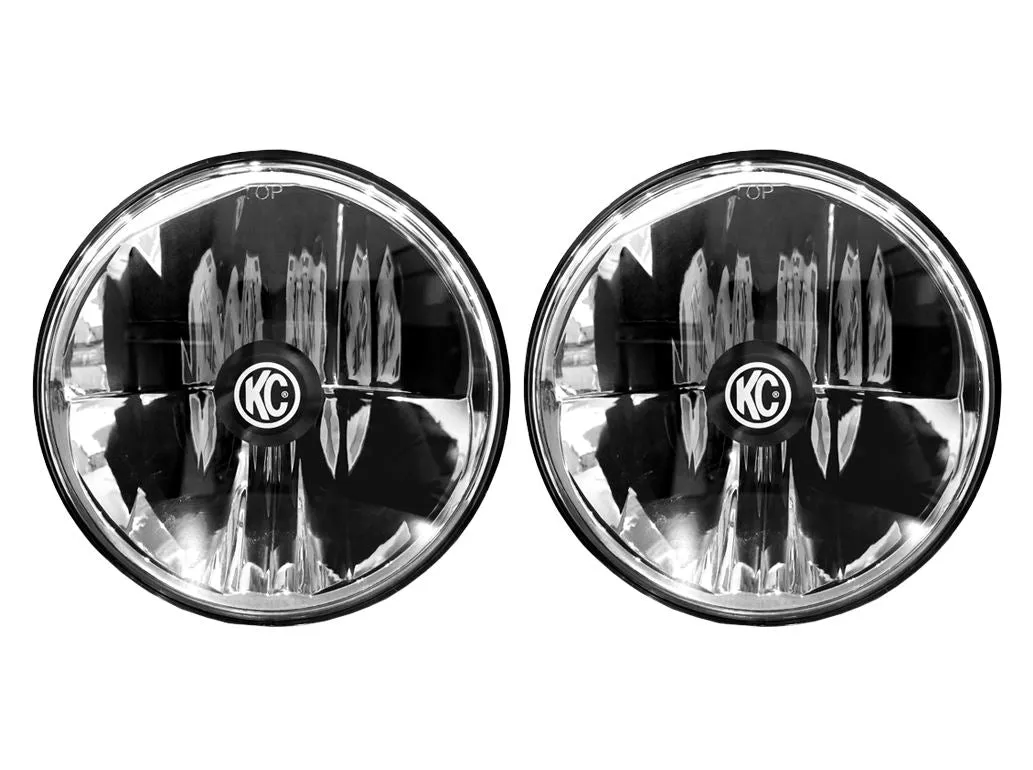

(2) Gravity® LED 7" Headlights

PERFORMANCE OUTPUT AND CLARITY

At the center of KC's new Gravity® LED 7" Headlight is our patented Gravity® Reflective Diode (GRD) technology, which is engineered for the driver to see every lumen emitted from the headlight by directing the LEDs to precisely engineered reflector optics at the most ideal angles. This proprietary technology provides a highly functional beam shape with extraordinary beam distance.

HIGH PERFORMANCE MEETS AFFORDABILITY

Gravity® LED 7" Headlights are engineered to perform at the highest standards, no matter the road conditions, while also being an affordable upgrade that greatly outperforms stock headlights.

HIGH/LOW/DRL FUNCTIONS BUILT IN FOR JEEP JK

The Gravity® LED 7" Headlight includes built-in functionality for the DRL (Daytime Running Light) and comes ready to install with H13 plug-and-play connectors.

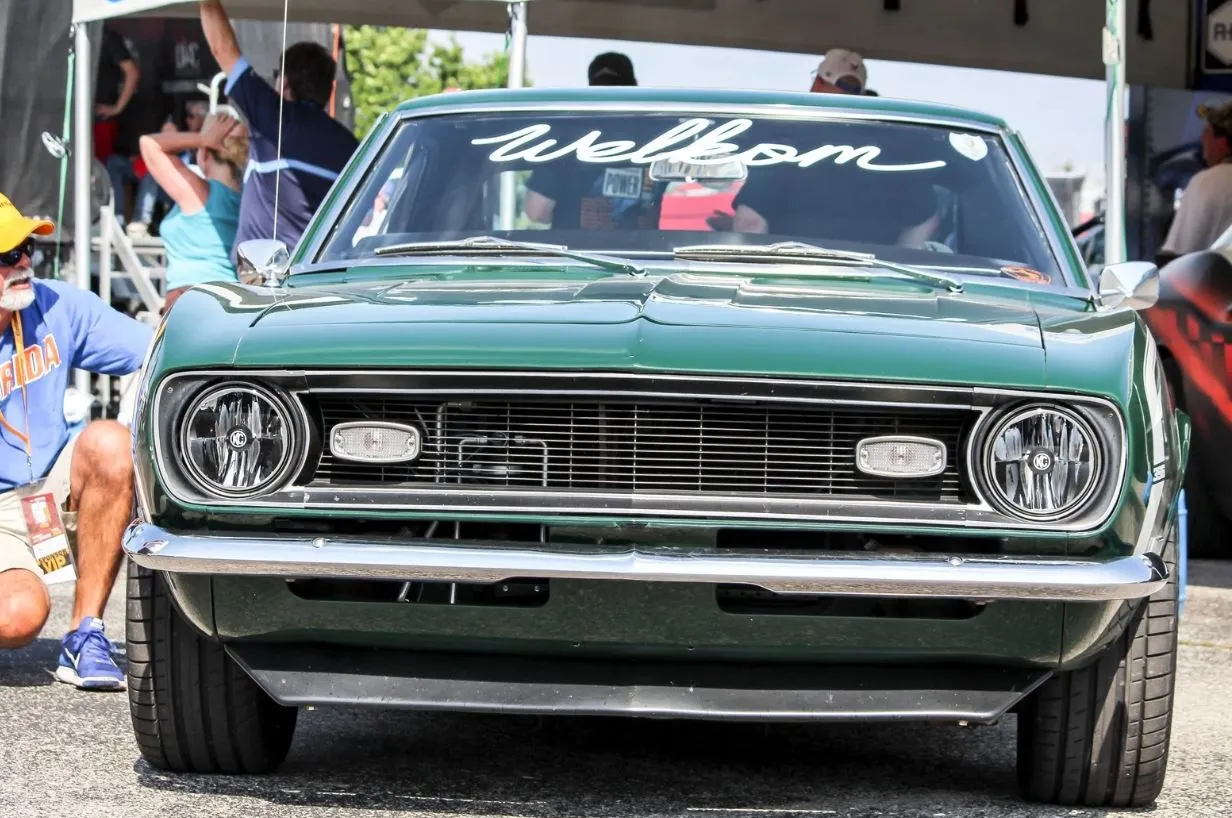

RETROFIT UNIVERSAL 7" H4 HEADLIGHT APPLICATION (KC 42361)

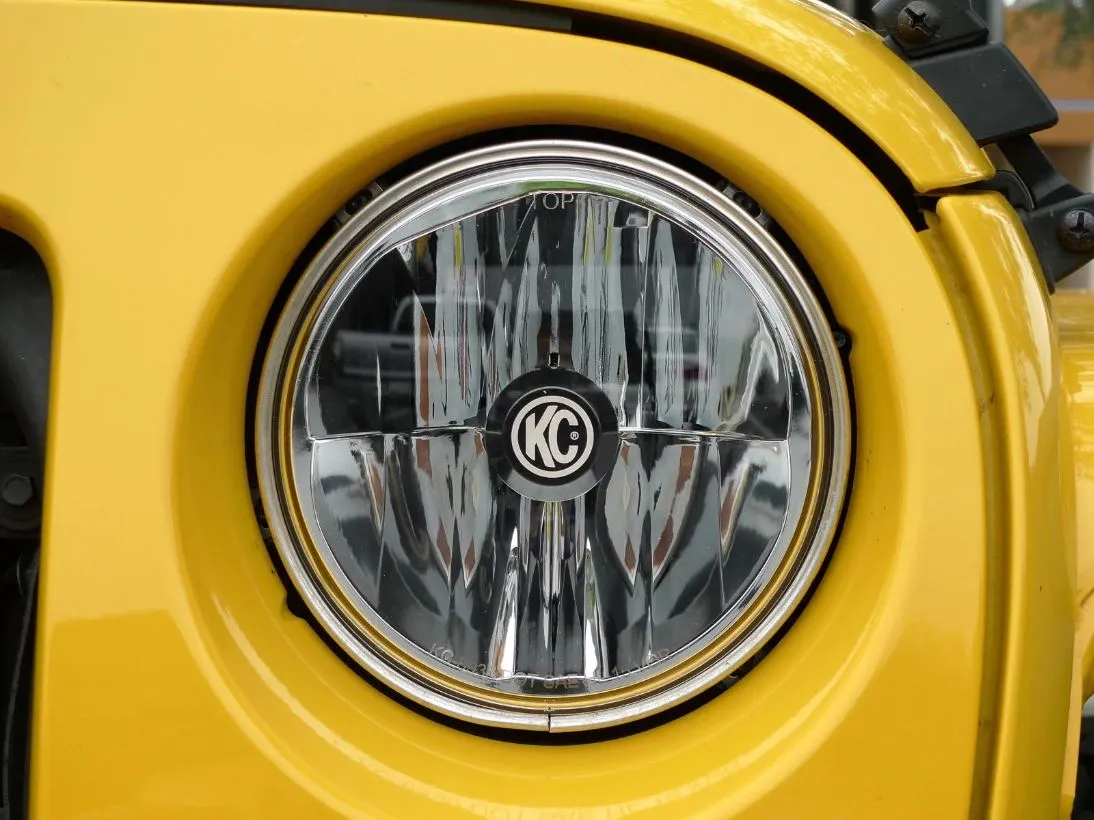

Update your classic vehicle’s appearance with modern LED technology using KC’s 7" Gravity LED Headlights, featuring easy plug-n-play installation in vehicles equipped with factory 7" H4 Headlights. Not to mention these are completely SAE street legal, D.O.T. compliant headlights with Low and High Beam function.
